Foam Machining Projects

Foam cutting and machining services

www.wecutfoam.com

EPS Foam machining of 1LB EPS foam

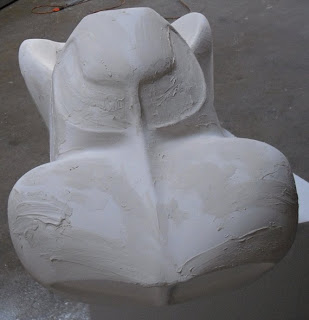

The car was machined using our CNC router, glued and then
coated - using a simple drywall mud


Now, a bit of sanding


And almost perfect results


Car prop is all smooth now

Easter Island Statue made from 1LB EPS foam
Machined from EPS using our CNC router


Easter Island statue and a dragon by its side

The foam is coated with Styrospray 1000
which is a polyurethane coat, then painted with stone-like paint

8' Totem Pole project
8' Totem Pole - machined from EPS foam using our CNC router

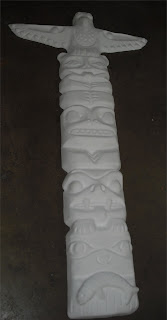

Still raw foam - not coated

And below - Coated with polyurethane and painted


Machining EPS column

Fabricating BAMScape Berkeley Art Museum Exhibit
Raw 1lbs EPS blocks ready to be machined


150 Curved 1LBS EPS machined Modules.
Each module is about 8'long 4'high 20"wide 3/8" thick plywood






All 150 modules laminated with plywood
Installed at Berkeley Art Museum - 1550sf display


EPS foam props- bottles
EPS foam props- bottles

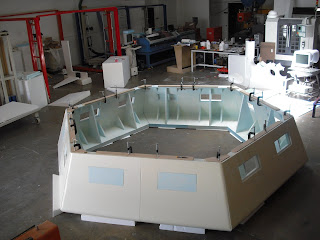

Concrete molds - EPS foam molds
Prototyping services - XPS foam

Coated with polyurethane

See how we fabricated Berkeley Art Museum BAMScape Project



Posted by at

Tuesday, December 1, 2015

How We Fabricated Berkeley Art Museum Exhibit with Architect Thom Faulders

The Berkley Art Museum project took 3 month to finish
With more than 160 pieces, most 8' in length.
3 months from start to finish

We started out with over 100 blocks of EPS 1LB foam

Foam being cut on the CNC hot wire foam cutter



EPS blocks after being cut on the CNC Hot wire
























Each piece is covered with 1/8" plywood on both sides
and 1/4" wiggle wood from the top



















Each piece is primed














And then Painted














Pieces placed, and mounted to one another















We glued anti slip pads onto each unit




The end result is an interactive Living Art, "serving as a site for rest, relaxation, and study, as well as a platform for the experience of live performance and multimedia events".

Fabricator - WeCutFoam
1248 Birchwood Drive
Sunnyvale, CA 94089



Posted by at

Monday, November 30, 2015

Fabricating an Innovative VTOL Aircraft Prototype Made of EPS Foam

Fabricating an Innovative VTOL Aircraft Prototype for Elytron LLC

We, at Foamlinx LLC and WeCutFoam have collaborated with Elytron Aircraft LLC beginning of 2014 to fabricate their newly designed two-seater VTOL (Vertical takeoff and landing) aircraft.
This was a unique and interesting fabrication process for us and it would use to create a whole aircraft that can actually fly and be functional.
We created this modern aircraft prototype by cutting and machining Expanded Polystyrene foam using our large CNC hot wire foam cutters as well as our CNC routers.

Custom CNC Hot Wire Foam Cutter

Large Foamlinx CNC Router

The foam cores we created were covered by Elytron using carbon fiber prepmeg to produce this innovative aircraft prototype that is an airplane capable of taking off and landing as a helicopter.



We have started working on Elytron’s aircraft design early in 2014, while given 3D CAD files.
To create some of the parts we used CNC hot wire foam cutters, while other parts were machined using CNC routers.
Some parts were machined on a router as large as 16ft x 8ft x 4ft in size so that the parts could be made in one piece instead of in sections.
The machines used had a high tolerance of up to 1/16”, since the parts had to be very precise in order to fit together in the final assembly.




We created 52 different parts for the fuselage and the wings using high-density EPS foam (Expended Polystyrene).
The whole cutting and machining process lasted about a year, and was done in increments, starting in the Spring of 2014, ending in late February 2015.





Once each batch of foam cores was done,
Elytron laminated them with carbon fiber prepreg material
and glued the core pieces together.

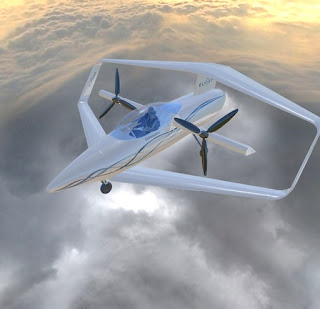

The end result is a unique and modern two-seater aircraft prototype.









Elytron is currently working on their 4-seater VTOL aircraft - Now that would be another great project we would love to be involved in.
Here is Elytron's website http://elytron.aero
Take a look at their YouTube Video
https://www.youtube.com/watch?v=whXDIu4BRZg


To see more of our foam creations visit us at www.wecutfoam.com
Like our Facebook Page www.facebook.com/wecutfoam
See our Instagram Page www.instagram.com/foamlinx
Visit us on Twitter twitter.com/We_Cut_Foam
